In our previous sharing session, we introduced how the BOLE EPL Series center-clamping dedicated machine for pallets addresses the challenges of deformation, dimensional accuracy and energy consumption in the injection molding of large-scale pallets.
Many industry partners have further asked: when producing extra-large pallets or logistics containers, traditional three-platen machines have limitations in mold space and a large floor footprint – is there a more compact and efficient equipment option available?

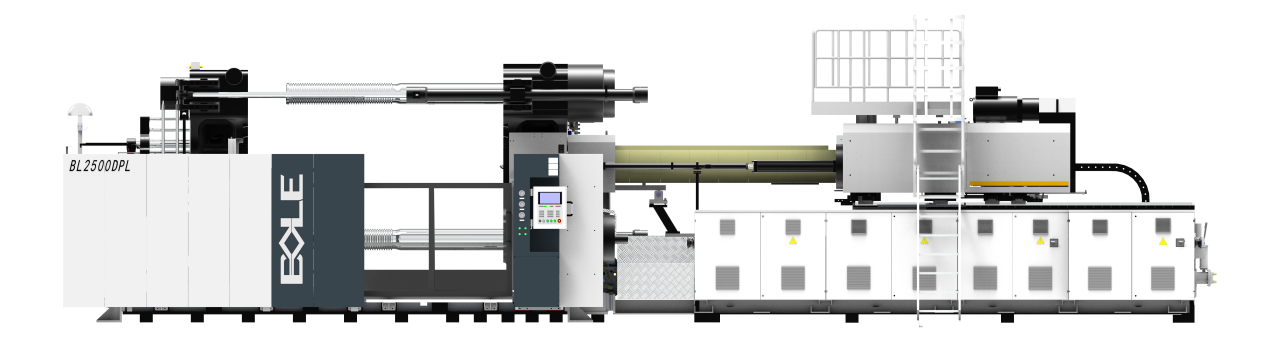

This time, we will focus on another important solution of Bole in the field of large logistics tray molding - the DPL two-platen tray-specific injection machine. The two-platen machine adopts a structure of direct locking with moving and fixed templates, eliminating the tail plate and the middle elbow rod, significantly shortening the body length. When dealing with tray production scenarios with extremely large molds and long opening stroke, it demonstrates significant advantages in terms of space and adaptability.
So, will this simple structure sacrifice mold-holding accuracy and rigidity？ How does it meet the strict requirements of tray molding processes？ We will analyze from the three dimensions of "structural innovation", "process adaptation" and "energy efficiency performance" how Bole's two-platen tray machine achieves comprehensive breakthroughs in "large workstations and long processes" production.
Structural Innovation: More Compact, More Powerful, More Intelligent
01
Efficient and smooth mold opening and closing system
With a unique design that separates the pull rod from the movable plate, combined with a flexible opening and braking mechanism and a high-precision linear rail design, this system significantly reduces the resistance and deviation of movement in the structure, making the large-scale mold opening and closing actions not only smooth and fast, but also effectively suppressing vibration and impact. Its outstanding stability is directly manifested as - when the machine is running, the coins placed vertically on the template can stand firm, laying a solid foundation for stable production.
02
Convenience for handling oversized molds
Optional pull-out rod function has completely eliminated the strict space requirements for installing oversized and heavy tray molds. The problem of mold replacement has been easily solved, making it particularly suitable for customers who need to frequently change molds or produce large-sized products.
03
Precise and reliable control core
Using non-contact magnetostrictive displacement sensors and combining with our own patented control algorithms, the mold opening repeatability accuracy is better than ±0.1%, and the system pressure control accuracy is locked within 0.3%. This fundamentally ensures the extreme stability and batch consistency of product dimensions.
04
Sturdy and durable mechanical body
The patented anti-fracture pull rod design and variable-angle brake nut system work together, ensuring reliable operation with the guarantee of "the pull rod never breaks". The independent cooling and filtration device can continuously maintain the hydraulic system clean and stable, significantly extending the lifespan of the core components.
Structural Innovation: More Compact, More Powerful, More Intelligent
Excellent rigid guarantee for dimensional stability
The "steel body" constructed by ultra-rigid templates and hard-core machine architecture can effectively suppress elastic deformation even under the c onditions of an extremely large projection area and an asymmetrical rib structure, ensuring uniform distribution of clamping force and fundamentally reducing warpage deformation, thus guaranteeing the flatness and dimensional accuracy of the tray.
Long-distance filling capability
The powerful injection system combined with a stable clamping platform provides sufficient and balanced pressure support for the long-distance flow of the melt, improving the strength of the weld line and meeting the perfect filling requirements of complex structures such as the reinforcing ribs of the tray.
Adaptability to complex raw materials
Inheriting and optimizing the efficient plasticizing system dedicated to Bole, it maintains excellent plasticizing homogeneity and color mixing effects even for complex raw materials containing recycled materials, ensuring the strength and appearance of the products.
Energy efficiency performance: Energy conservation and intelligence in parallel
The Bole DPL two-platen machine not only excels in "hard power" but also leads in "soft power" and energy management.
Energy-saving design from the source
It adopts a low-inertia cylinder design and is equipped with an electric pre-plasticizing system, significantly reducing the energy consumption of actions and cycle time. The measured energy consumption is reduced by more than 15% compared to similar two-platen machines.
Intelligent management system
Equipped with Bole's new-generation intelligent control system, it not only achieves precise control of process parameters but also integrates an energy consumption visualization system, which can monitor and analyze energy consumption data in real time and according to different time dimensions, providing clear guidance for optimizing the process and achieving the lowest unit consumption. At the same time, the intelligent remote maintenance system supports remote diagnosis and technical support through encrypted channels across borders, ensuring worry-free production for global customers.
The Bole DPL two-platen pallet-specific injection molding machine, with its compact structure, precise control, deeply adapted process and significant energy efficiency and intelligence advantages, provides a powerful solution beyond traditional options for pallet manufacturers pursuing maximum space utilization, compatibility with super-large molds and ultra-high production efficiency. The ultimate stability it demonstrates (such as a coin not falling over) is a vivid footnote to its core strength. The DPL and EPL series together form Bole's complete high-end equipment matrix serving the logistics pallet industry. In the future, Bole will continue to leverage technological innovation to help customers seize market opportunities.
